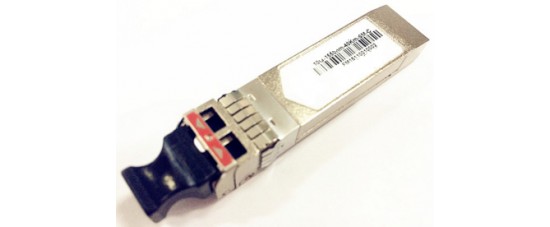

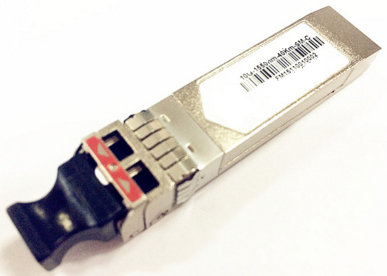

10G ER SONET SFP+ Fiber Optical Transceiver
- Product description
- Functions
- Technical parameters
- Application
The TK-OPT-SFP1-10GS is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The TK-OPT-SFP1-10GS series converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with XFI specification (built in CDR on both TX and RX) and allows FR4 host PCB trace up to 200mm.

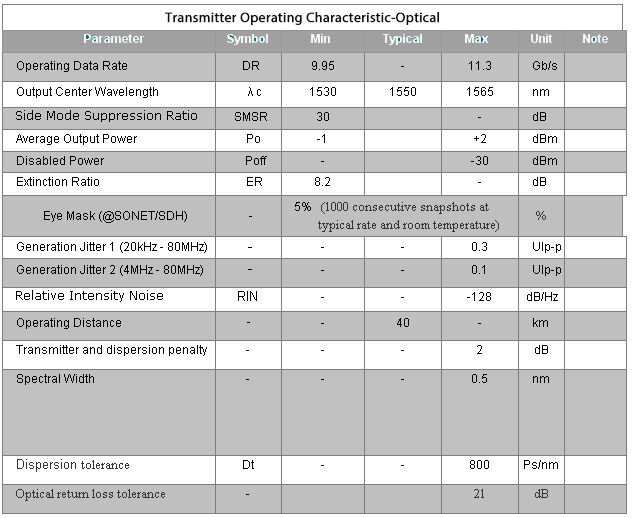

The TK-OPT-SFP1-10GSis designed for use in a variety of 10Gb/s equipment SDH/SONET (9.95Gb/s), Ethernet LAN (10.3Gb/s) and FC (10.5Gb/s). The customer can adjust interface electrical level to select 9.95G~11.3G rate section. The high performance 1550nm DFB transmitter coupled with a high sensitivity PIN receiver provide superior performance for applications up to 40km SMF.The fully compliant SFP form factor provides high density applications, hot plug ability easy optical port upgrades and low EMI emission.

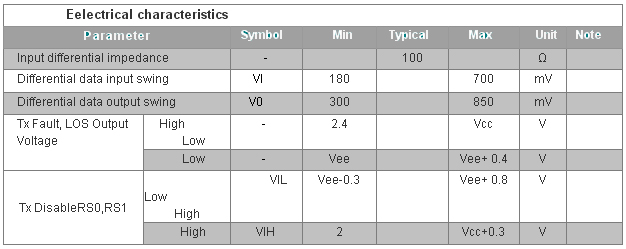

The SFP+ ER with CDR module electrical interface is compliant to XFI electrical specifications. The transmitter input and receiver output impedance is 100Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.
