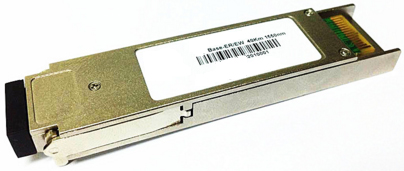

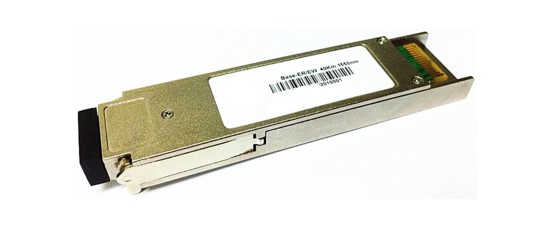

10G XFP Fiber Optical Transceiver

•  Support 10GE application at the data-rate of 10.3125Gbps and 9.953Gbps
•   Up to 40km transmission
•  1550nm cooled EML and PIN receiver
•  XFI electrical interface
•  2-wire interface for integrated Digital Diagnostic monitoring
•  XFP MSA package with duplex LC connector
•  Hot pluggable
•  Very low EMI and excellent ESD protection
•  +3.3V & +5V power supply
•  Power consumption less than 3.5 W
• Operating Case Temprature:0~+70℃

Standard

• Compliant with XFP MSA
•   Compliant with IEEE 802.3ae-2002
•   RoHS compliance

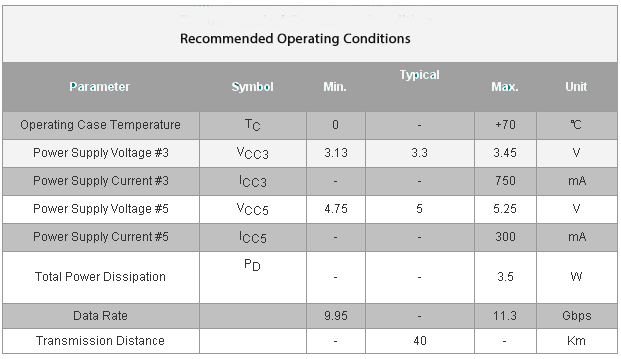

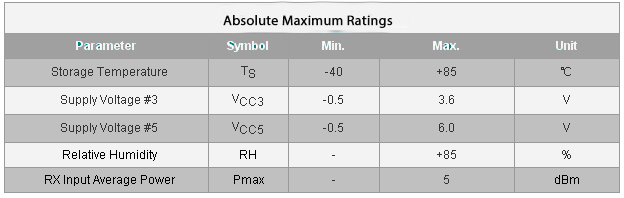

Parameters:

Notes:

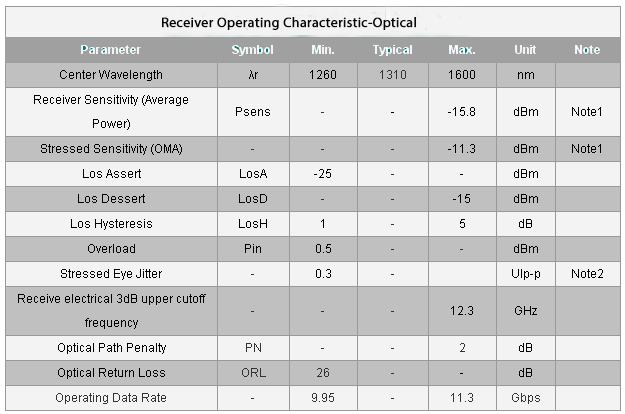

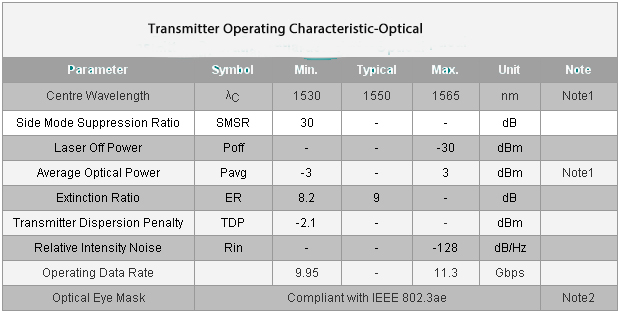

[1] Average optical power shall be measured using the methods specified in TIA/EIA-455-95.

 [2] Vertical eye closure penalty and stressed eye jitter are the test conditions for measuring stressed receiver sensitivity. They are not the required characteristic of the receiver.

Notes:

[1] Receiver sensitivity is informative. Stressed receiver sensitivity shall be measured with conformance test signal for BER =1x 10-12 .

[2] Vertical eye closure penalty and stressed eye jitter are the test conditions for measuring stressed receiver sensitivity. They are not the required characteristic of the receiver.

Notes:

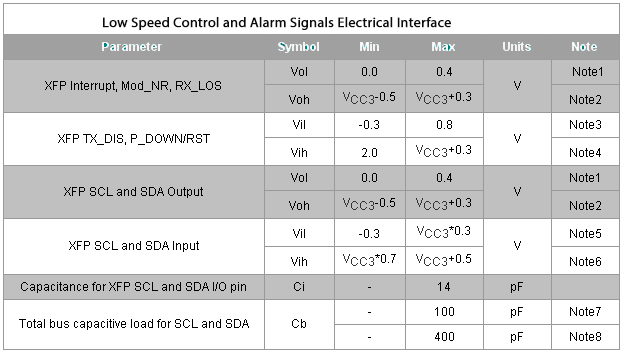

[1] Pull-up resistor must be connected to host_Vcc on the host board. Iol(max)=3mA

[2] Pull-up resistor must be connected to host_Vcc on the host board.

 [3] Pull-up resistor connected to VCC3 within XFP module. Iil(max)= -10μA.

 [4] Pull-up resistor connected to VCC3 within XFP module. Iih(max)= 10μA.

[5] Pull-up resistor must be connected to host_Vcc on the host board. Iol(max)= -10μA.

 [6] Pull-up resistor must be connected to host_Vcc on the host board. Iol(max)= 10μA.

 [7] At 400KHz, 3.0kohms, at 100kHz 8.0kohms max.

[8] At 400KHz, 0.8kohms, at 100kHz 2.0kohms max.

Application

•  SONET(OC-192)/SDH(STM64) line card
• 10GBASE-ER at 10.3125Gbps
• 10GBASE-EW at 9.953Gbps
•   Other optical links
