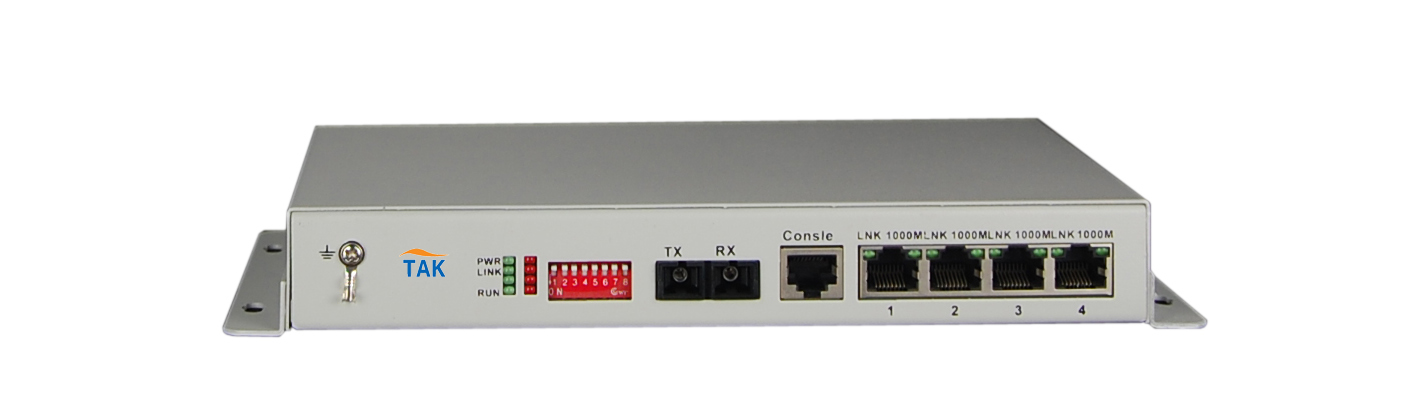

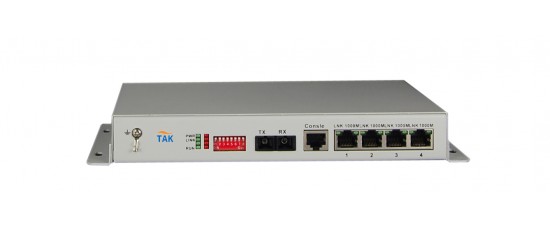

2*1000M Gigabit Ethernet+4*RS232/RS485/RS422 fiber media converter

•  Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;
•  Device provides 2 Ethernet UTP,4 RS232/422/485 serial port. 1 Ethernet optical port
•  Support full-duplex and half duplex network communication, with auto-negotiation capability;
•  The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied with IEEE802.10 protocol
•  Division of VLAN base PORT, this method does not affect the remote device
•  802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN
•  Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;

  Fiber
         Multi-mode Fiber
    50/125um, 62.5/125um,
    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
    Transmitting power: -12dBm (Min) ~-9dBm (Max)
    Receiver sensitivity: -28dBm (Min)
    Link budget: 16dBm
        Single-mode Fiber
    8/125um, 9/125um
    Maximum transmission distance: 40Km
    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
    Wave Length: 1310nm
    Transmitting power: -9dBm (Min) ~-8dBm (Max)
    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

 Gigabit Ethernet Interface (10/100/1000M)
    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096

   Connector:                  RJ45, support Auto-MDIX

  Serial Interface
    Standard
    EIA/TIA-232 RS-232 (ITU-T V.28)
    EIA/TIA-422 RS-422 (ITU-T V.11)
    EIA/TIA-485 RS-485 (ISO/IEC8284)
    Serial Interface
    RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground
    RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground
    RS-485 2 wires: Data+(Correspond TX+), Data-（Correspond TX-）, Signal Ground

    RS-232: RXD, TXD, Signal Ground

   Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

   Dimension
    Product Size : 19 inch 1U  483X138X44mm( WX DXH))
    Simple packaging : 19inch 522 X198 X82mm ( WX DXH)

   Piece Weight: 2.1KG

  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
