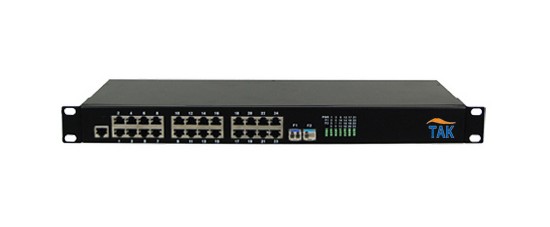

2410/100M Fast Ethernet+21000 Base-S/LX Ethernet Switch, with VLAN setting and Logic isolation

This equipment provides 24*FE+2*1000 Base-S/LX Ethernet+Console+VLAN+logic Isolation

Product description
Functions
Technical parameters

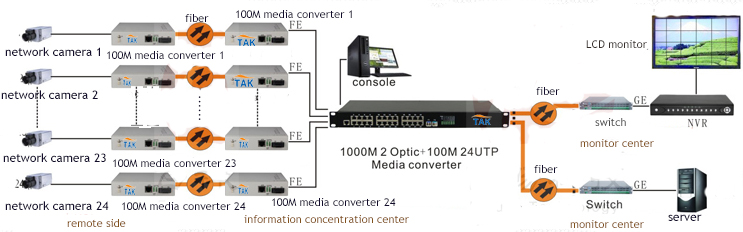

Application

TK-C2FO-24FE is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 24*10/100Base-T UTP and 2*1000Base-S/LX. It mainly used for fiber network far distance (20/40/60/80/100km) transmission, supports 10/100/1000M or 10M,100M,1000M transmission rate. Fiber port and UTP can work through 100M or 1000M rate.

Ethernet UTP/STP interface automatically adapt to 10/100Mbps environment, upgrade network easily;
Device provides 24*FE UTP/STP interface, and 2*1000BASE-S/LX interface with SFP fiber module.
Support full-duplex and half duplex network communication, with auto-negotiation capability;
The max package length up to 1632 Bytes, which can match with the switch product complied with IEEE802.10 protocol
Support UTP cross connection switch optional, convenient for system debugging and setup
Device provides Console port, supports Terminal control device
Ethernet port priority setting
AC 220V, DC-48V, DC24V can be optional, and DC-48V/DC24V
power has polarity automatic detectionfunction,
you can install the device without differentiation between positive and negative polarity.

Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

Transmission distance may also be limited by fiber optic bandwidth.

Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

Dimension
Product Size : 485X138X45mm( WX DXH))
Simple packaging : 522X198 X82mm ( WX DXH)

Piece Weight: 3.3KG

Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
