32*FXS/FXO telephone multiplexer with 4E1 and 2*Gigabit Ethernet and 2*100M Ethernet and 2*serial data
This telephone multiplexer provides 32 *FXS/FXO,4E1,2*serial data,4 channel Ethernet physical isolation(Band width 100M),2channel Ethernet physical isolation(Band width 1000M),support Console or SNMP,Support 6U rackmount
- Product description
- Functions
- Technical parameters
- Application

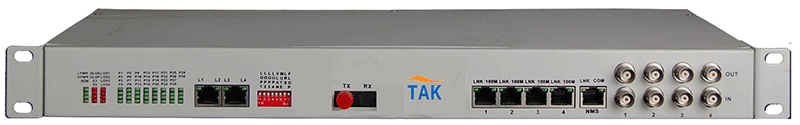

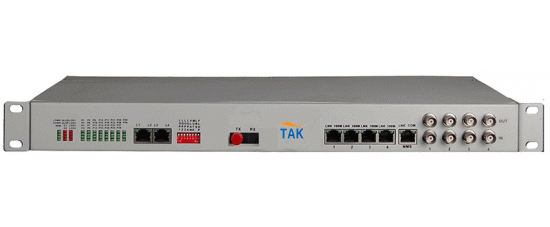

TK-FP-32-4FE-2GE-2D is a kind of our company developed point to point transmission equipment based on specific VLSI,it provides 32 channel voice,4 E1 interfaces, 4channel 100M Ethernet interface,4channel 1000M Ethernet interface,the 4channel 100M Ethernet,Each Ethernet port has its own independent bandwidth; 4 gigabit Ethernet port,1-2 as a group, 3-4 port as a group, each group has a separate gigabit bandwidth,the 6 channel Ethernet total bandwidth is 2400M,transmission over one fiber, 4 Fast Ethernet signal is completely independent,two group Gigabit Ethernet signal is completely independent, non-interfering, independently of each other, that is, physical isolation; and one expansion interface. 1 Extended service interface (can be used as 1~2*RS232 / RS485 / RS422 asynchronous data, 1~4*dry contact signal), the application is very flexible.support SNMP,console,SFP 1+1 fiber backup.
-
Based on proprietary integrated circuit;
-
E1 interface complies with G.703, all-digital clock recovery and smooth phase-locked technology;
-
An expansion interface (AUX1/2),can be extended 1~2channel asynchronous data, such as RS232 / RS485 / RS422 / Manchester codes; or 1~4channel dry contact signal, 1~2channel E1 (Thus, this device E1 channel up to 6), 1-2 channels voice,or 2/4wire audio, etc.
-
4channel 100M Ethernet, full / half duplex fully adaptive,Each Ethernet port has its own independent bandwidth,physical isolation
-
4 gigabit Ethernet port,full / half duplex fully adaptive,1-2 as a group, 3-4 port as a group, each group has a separate 1000M bandwidth,physical isolation
-
100M and 1000M Ethernet support transmission long VLAN packets, Can be used with the switch support IEEE802.1Q protocol,it can support up to 9K Jumbo Frame packet length Ethernet packets
-
Support FXO/FXS, EM2/4 audio, Magnet telephone Interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;
-
1~32channel Voice access, support caller ID function and reverse polarity billing functions;
-
Support Telephone Number mutual function of each site;
-
Each Ethernet ports support Auto-MDIX (cross / straight cable adaptation);
-
Unrepeated transmission distance of up to 2 to 100 km;
-
Multiple power mode options: AC220V, DC-48V / DC24V, etc;
-
Telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs, the peak output voltage 6KV open standards.
Fiber
Number of Fiber Ports:2
Optical Wavelength:
850nm/1310nm for multi- mode optical
1310nm/1550nm for single-mode optical interface
Fiber Core: Single/Dual fiber core
Connector: FC/SC/ST/LC(SFP)
Distance : 20km-120km
Typical output power:
single mode 1310/1550nm: >-9dBm
multi-mode 850nm:>-18dBm
multi-mode 1310nm:>-25dBm
Receiver Sensitivity: -28dBm~- 40dBm
E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation:0~6dBm
100M Ethernet interface
Interface rate: half/full duplex auto-negotiation
Interface Standard:Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector:RJ45, support Auto-MDIX
1000M Ethernet interface
Interface rate: half/full duplex auto-negotiation
Interface Standard:Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector:RJ45, support Auto-MDIX
FXS Phone Interface
Ring voltage: 75V
Ring frequency:25HZ
Two-line Impedance:600 Ohm (pick up)
Return loss:40 dB
FXO Switch Interface
Ring detect voltage:35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss:40 dB
Management Interface
Interface type: RJ45(SNMP NM)
Main features: network management platform can manage every point device, and monitor its status (specific configuration and process management software after purchase our company product,we will provides documentation and configuration management software)
Working environment
Working temperature:-10°C ~ 50°C
Working Humidity:5%~95 % (no condensation)
Storage temperature:-40°C ~ 80°C
Storage Humidity:5%~95 % (no condensation
