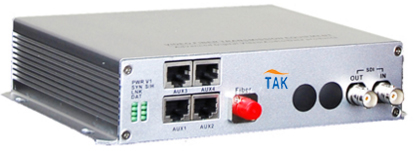

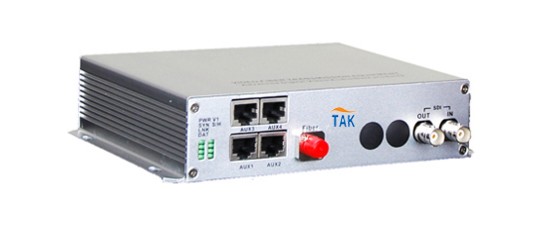

3G HD-SDI video fiber optical transceiver with data,audio,telephone,E1,Ethernet

•  can provide normal desktop, concentrated plug-in frame in a variety of ways
• SD, HD, 3G automatically detects input, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate; support new FULL HD Full HD 1080P / 60HZ 3Gbps HD-SDI format signal,Transmission distances of up to 80KM;
• support SMPTE 424M (2.97Gbps / s), SMPTE 292M (1.485Gbps / s), SMPTE 344M (540Mb / s), SMPTE 259M (360Mb / s) and DVB-ASI (270Mb / s)
• band transmitter automatic cable equalization, 80M: 2.97Gb / s, 140M: 1.485Gb / s 250M: 270Mb / s
•  transmitter and receiver with the way all the other SDI video output, and a LED indicates the status of SDI signal access
•  data interface and video interface provides three mine-protected, by ITU-T K.21 (10/700 μS), common mode: 6KV, impedance (40 Ω) test
• asynchronous data available for RS232 / RS485 / RS422 / Manchester code

   3Gbps HD-SDI Video
    Video bandwidth：270Mb/s – 2.97Gb/s
    TV signals：SMPTE 424M、SMPTE 292M、SMPTE 344M、SMPTE 259M和 DVB-ASI
    Reflection loss：>15DB
    Balanced： 250m @ 270Mbit/s,140m @ 1.485Gbit/s,80m @ 2.97Gbit/s

     Interface: 75 BNC

  Audio
    Audio input & output Level: 0.5-4Vp-p
    Audio input & output impedance: 600Ω (balance / imbalance)
    Audio Bandwidth: 20Hz~20KHz
    Nonlinear distortion coefficient: < 1 %
    Audio signal-to-noise ratio (weighted): S/N>85dB

    Interface Port: RJ45/RCA

  Data interface
    Data Interface:  RS-232、RS-422、RS-485、TTL
    Data Mode:  NRZ、Manchester、Bi-phase
    Data Rate:  110bps-115.200Kbps

    Interface Port:  RJ45

 Switch
    Respond Time: <0.5ms

    Switch Signal: 30VDC/0.5A

  Optical
    Respond Time: <0.5ms
    Switch Signal: 30VDC/0.5
    Ringing voltage：75V
    Ringing frequency：25HZ
    Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
    Fiber：Single-mode Fiber 9/125um
    Optical interface：FC 、SC、ST
   Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

   Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤5W

   Dimension
    Product Size:         186X138X31mm(WXDXH)

    Piece Weight :      1.5KG

  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
