4*100M Ethernet fiber media converter with 1+1 optical redundancy function

• Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

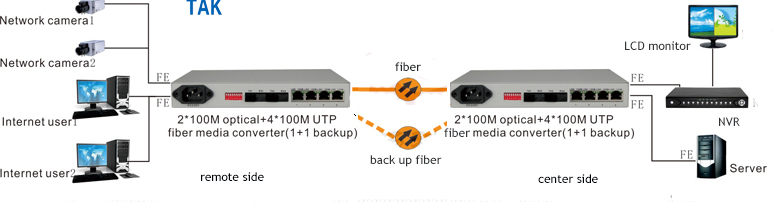

•  Device provides the main fiber interface with backup optical interfaces, dual fiber port backup function  ensures that the business will never break;
•  Device provides 4 Ethernet UTP, 2 Ethernet optical port
•    Support full-duplex and half duplex network communication, with auto-negotiation capability;
•    The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied  with IEEE802.10 protocol
•    4*100 megabit Ethernet channel, complete physical isolation. The same circuit optical fiber transmission of  4 group network business independently.
•    Division of VLAN base PORT, this method does not affect the remote device
•    802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN
•    Device provides Console port, supports Terminal control device
•    Ethernet port priority setting

  Ethernet UTP Interface
    Interface rate:              10/100 M, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

   Optical Ethernet interface
    Wave Length:          1310nm, 1550nm
    Interface rate:              100 M, half/full duplex
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  FC/SC
    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

 Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

  Dimension
    Product Size :       216X140X31mm( WX DXH))
    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation
