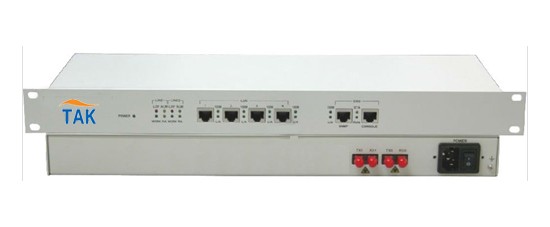

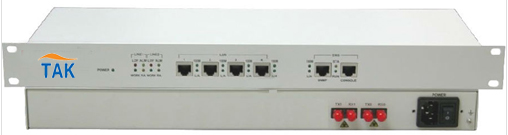

4*Ethernet over SDH (EOS converter), with 2 STM-1 optical interface, support Console and SNMP management
- Product description
- Functions
- Technical parameters

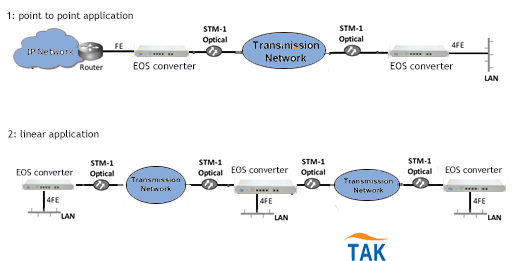

- Application
TK-SDH155-EOS-4ETH series deliver bonded Ethernet services over legacy SDH networks. Installed at the customer site, TK-SDH155-EOS-4ETH leverages the SDH infrastructure for LAN connectivity and internet access. Moreover, inter operating with TAK company’s MSAP product, TK-SDH155-EOS-4ETH offers an innovative and competitive solution to reduce OPEX and CAPEX for carriers or ISPs.
The Ethernet frames are encapsulated in SDH frame by using GFP(generic frame protocol) and transported through the SDH network in a VC-12group, configuring the bandwidth of IP channel in increments of 2Mbps, with maximum bandwidth up to 100Mbps.
TK-SDH155-EOS-4ETH introduces LCAS technology and VCAT technology to benefit the SDH network to better fit busty data traffic. TK-SDH155-EOS-4ETH grooms up to two WANs, aggregating two direction Ethernet services into SDH networks
TK-SDH155-EOS-4ETH provides two management methods: SNMP and console. The TAK communication company’s central network management system supports remote configuration and monitoring,reducing operating expenses, eliminating technical visit and maximizing network performance and up time.
