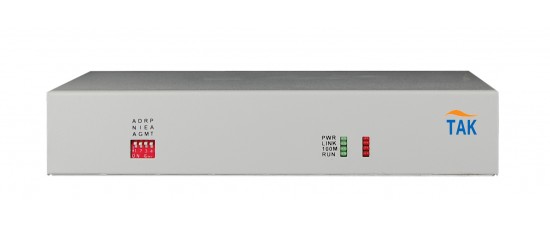

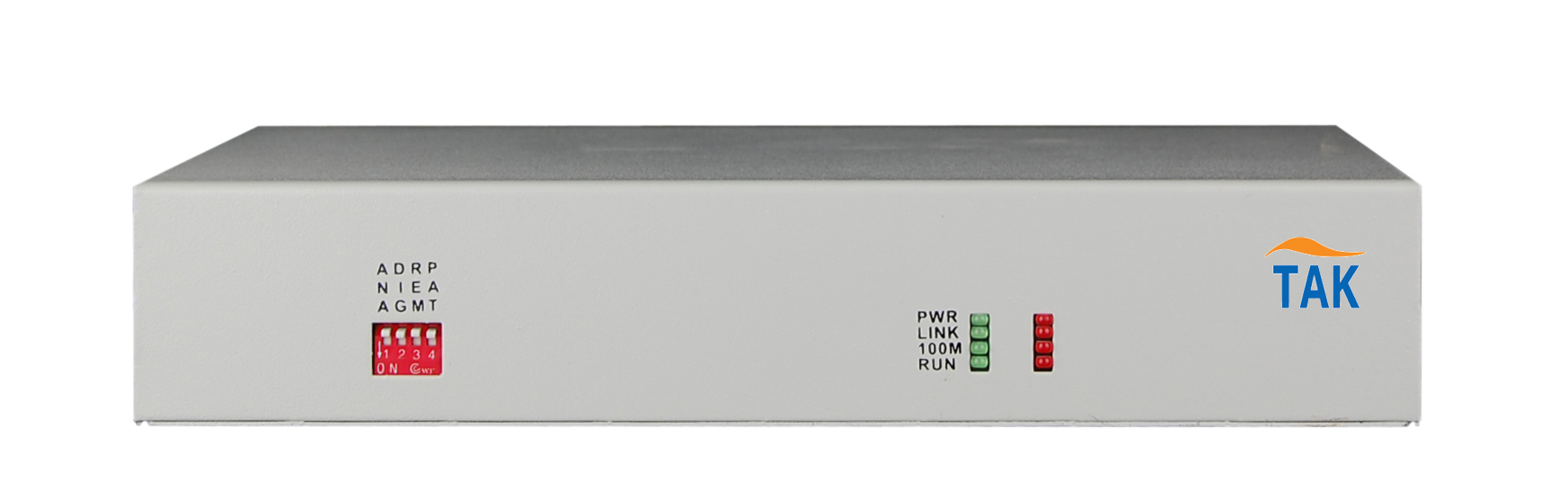

8*100M fiber media converter with VLAN setting

This equipment provides 8*100M Ethernet +1 *100Base-S/LX Ethernet+Console+VLAN setting

Product description
Functions
Technical parameters

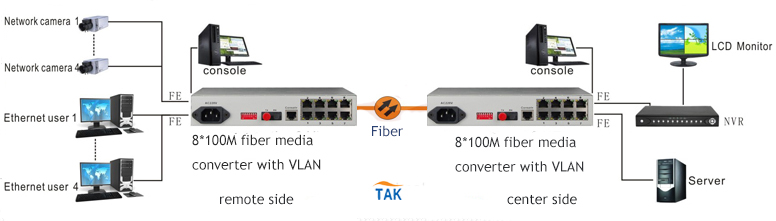

Application

TK-CFO-8FE supports a maximum multimode fiber optic cable distance of 20/40/60/80/120 kilometers , providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations support the 10/M/100M/Ethernet transmission using SC-terminated multimode fiber, while delivering solid network performance and scalability. Support optical interface and Ethernet interface.

Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;
Device provides 4 Ethernet UTP, 1 Ethernet optical port
Support full-duplex and half duplex network communication, with auto-negotiation capability;
The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied with IEEE802.10 protocol
Support UTP cross connection switch optional, convenient for system debugging and setup
Division of VLAN base PORT, this method does not affect the remote device
802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN
Device provides Console port, supports Terminal control device
Ethernet port priority setting
Support SNMP Network Management

Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

Transmission distance may also be limited by fiber optic bandwidth.

Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)

Piece Weight: 1.8KG

Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
