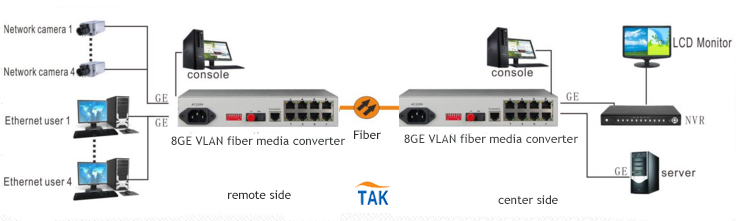

TK-CFO-8GE series is IEEE802.3 Ethernet media converter, 10/100/1000M twisted pair to 1000Base-X fiber media, is mainly used for long-distance fiber-optic network (20/40/60/80/100 km) transmission. This product provides one gigabit optical port; 8 Gigabit Ethernet port, and shared gigabit bandwidth, the bandwidth of each channel can be set via the Console port (Ethernet interface switching port can support VLAN classification), namely logical isolation; a Console port. With a sound alarm function, the whole stable, reliable, low power consumption, high integration, small size
-
BroadCom company based non-blocking switching chip solution (non-exchange market two five chip stitching), which with large cache, with the crash CPU monitoring reset function, network cameras for video heavy load applications
-
Low power consumption, low heat, stable performance, long life
-
Ethernet electrical interface automatically adapts to 10/100/1000Mbps environment, MDI/MDI-X auto-negotiation, easy to upgrade the network;
-
Device provides one gigabit optical port; 8 Gigabit Ethernet ports, and gigabit bandwidth sharing; a Console port that supports super terminal control device;
-
Support full-duplex and half-duplex network communication, with auto-negotiation capability;
-
Support the transmission of extra-long VLAN packets that can support IEEE802.1Q Items matching switch protocol used to support up to 9K bytes jumbo frame;
-
Multiple power mode options: AC220V, DC-48V / DC + 24V / DC + 12V and the like;
-
Ethernet interfaces with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs, open circuit peak output voltage 6KV standards;
-
DC-48V/DC+24V ower has polarity automatic detection function , you can install the device without differentiation between positive and negative polarity.
-
BroadCom company based non-blocking switching chip solution (non-exchange market two five chip stitching), which with large cache, with the crash CPU monitoring reset function, network cameras for video heavy load applications
-
Low power consumption, low heat, stable performance, long life
-
Ethernet electrical interface automatically adapts to 10/100/1000Mbps environment, MDI/MDI-X auto-negotiation, easy to upgrade the network;
-
Device provides one gigabit optical port; 8 Gigabit Ethernet ports, and gigabit bandwidth sharing; a Console port that supports super terminal control device;
-
Support full-duplex and half-duplex network communication, with auto-negotiation capability;
-
Support the transmission of extra-long VLAN packets that can support IEEE802.1Q Items matching switch protocol used to support up to 9K bytes jumbo frame;
-
Multiple power mode options: AC220V, DC-48V / DC + 24V / DC + 12V and the like;
-
Ethernet interfaces with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs, open circuit peak output voltage 6KV standards;
-
DC-48V/DC+24V ower has polarity automatic detection function , you can install the device without differentiation between positive and negative polarity.
