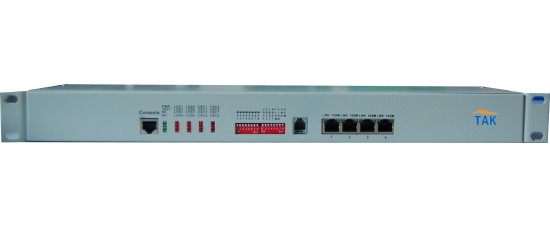

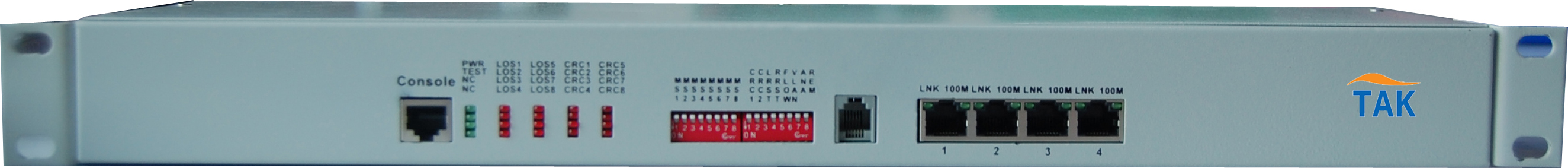

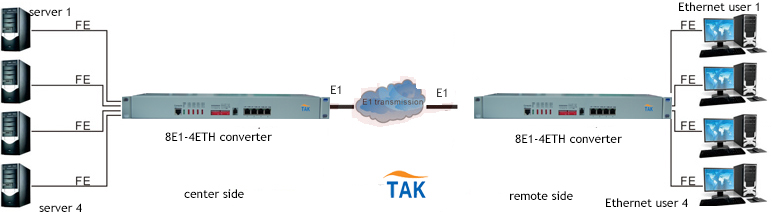

8E1 to 4*Ethernet interface converter with logical isolation

•  Based on self -copyright IC
• To achieve Ethernet data transparent transmission in 1-8E1 circuits
•  Can realize the local and the remote device reset
•   Ethernet Interface is 100BASE-FX, support VLAN protocol
•  Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
• Single Channel lines rate is 1984Kbit/s, 8Channel Bandwidth is up to 7936Kbit/s
•  Channel 10M/100M Ethernet interface can isolate each other to realize communication independently
• Ethernet interface supports10M/100M, half/full duplex auto- adaptable and AUTO-MDIX  (crossed line and straightly connected line self-adaptable )
•   CRC automatic alarm threshold can be set to isolate the poor quality transmission lines and cut off a single-direction. When 2M branch  circuit onedirection error rate exceeds threshold, cutting off this direction the other direction is not affected; that is to say, both of the  Ethernet directiontransmission can be asymmetric
•   Allow 8-Channel E1 transmission time delay difference 100ms. When the margin exceed the allowed range, the system can automatically stopon the E1 that time delay is too large to send data
•   E1 interface conform to ITU-T G.703, G.704 and G.823, not support the use of signal timeslot
•   E1 interface module with inter-set clock recovery circuit and HDB3 code circuit
•  Support E1 channel hot-plug in the device, and automatically detects the effective E1 channel and will not interrupt data transmission
•  Can support 1-8Channel E1 channel configuration, can automatically detect the number of E1 and select the E1 available;

  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance), 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

 Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

   Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

   Dimension
    Product size:  19 inch 1U   485X138X44mm(WXDXH)
    Simple packaging :  522X198X82mm( WXDXH)

    Piece weight :  1.8KG

 Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
