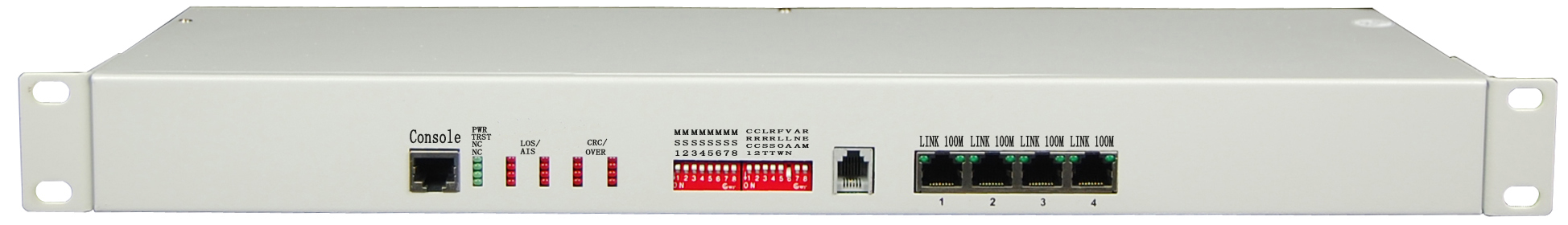

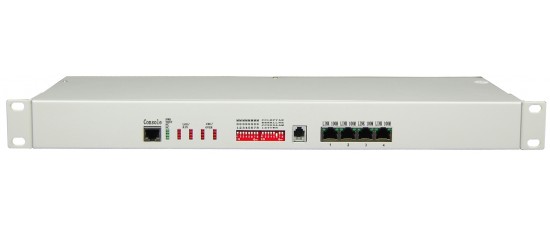

8E1 to Ethernet Converter

• Based on self -copyright IC
•  To achieve Ethernet data transparent transmission in 1-8E1 circuits
•  Can realize the local and the remote device reset
•  Ethernet Interface is 100BASE-FX, support VLAN protocol
•  Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
•  Single Channel lines rate is 1984Kbit/s, 4Channel Bandwidth is up to 7936Kbit/s
• Support all set of Ethernet Work Mode
•  CRC automatic alarm threshold can be set to isolate the poor quality transmission lines and cut off a single-direction. When 2M branch circuit one direction error rate exceeds threshold, cutting off this direction the other direction is not affected; that is to say, both of the Ethernetdirection transmission can be asymmetric
•  Allow 8Channel E1 transmission time delay difference 100ms. When the margin exceed the allowed range, the system can automatically stop on the E1 that time delay is too large to send data
•  E1 interface conform to ITU-T G.703, G.704 and G.823, not support the use of signal timeslot
•  E1 interface module with inter-set clock recovery circuit and HDB3 code circuit
•  Support E1 channel hot-plug in the device, and automatically detects the effective E1 channel and will not interrupt data transmission
•  Can support 1-8Channel E1 channel configuration, can automatically detect the number of E1 and select the E1 available;

E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance), 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

 Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

   Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

 Dimension
    Product size:  19 inch 1U   485X138X44mm(WXDXH)
    Simple packaging :  522X198X82mm( WXDXH)

    Piece weight :  1.8KG

Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
