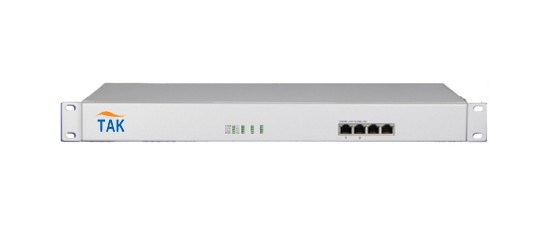

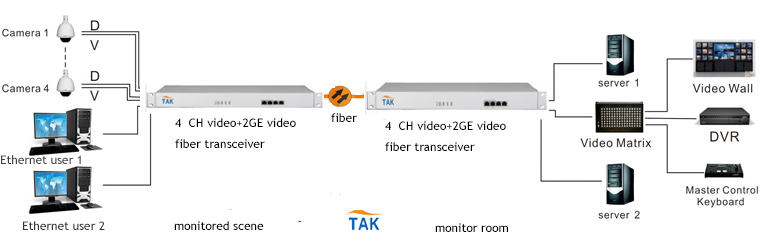

4 CH video+2 CH Gigabit Ethernet video fiber optical transceiver

•  All-digital fiber optic transmission platform, multi-service platform with flexible configuration
•  can provide general-desktop mini desktop, centralized card rack in many ways
•  Ethernet line with international standards: IEEE 802.3ab 1000Base-T
• 1000M Ethernet wire-speed rate support
•  VLAN support the transmission of long packets;
•  With broadcast storm protection, balanced flow, isolation and conflict error detection functions
•  10Mbps / 100Mbps / 1000Mbps automatically adapt to the electrical port MDI / MDI-X Adaptive without manual adjustment
•  data interface and video interface provides three mine-protected, by ITU-T K.21 (10/700 μS), common mode: 6KV, impedance (40 ohm) test
•  single fiber transmission, optional dual fiber
•  dan receive no light is detected, the remote device is powered down or disconnected fiber
• PAL / NTSC / SECAM compatible with all standard, studio-grade transmission quality
•  asynchronous data transfer rate than 110-115.200Kbps
•  asynchronous data available for RS232 / RS485 / RS422 / Manchester code

  Video interface
    Video Bandwidth:   5Hz~10Hz
    Rate input & output Level:  1Vp-p
    Sampling Frequency:  16.4M (typical value)
    Signal Impedance:  75 ohm
    Signal Interface:  BNC/PAL/NTSC/SECAM
    Differential Gain (DG):  <1.3 %( typical value)
    Differential Phase (DP):  <1.3° (typical value)

    Signal Noise Ratio (SNR):  63dB

  Data interface
    Data Interface:  RS-232,RS-422,RS-485,TTL
    Data Mode:  NRZ,Manchester,Bi-phase
    Data Rate:  110bps-115.200Kbps

    Interface Port:  RJ45

  Audio
    Audio input & output Level: 0.5-4Vp-p
    Audio input & output impedance: 600ohm (balance / imbalance)
    Audio Bandwidth: 20Hz~20KHz
    Nonlinear distortion coefficient: < 1 %
    Audio signal-to-noise ratio (weighted): S/N>85dB

    Interface Port: RJ45/RCA

 Ethernet interface(100/100M)
    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
   MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

  Switch
    Respond Time: <0.5ms

    Switch Signal: 30VDC/0.5A

  Optical
    Respond Time: <0.5ms
    Switch Signal: 30VDC/0.5
    Ringing voltage:75V
    Ringing frequency:25HZ
    Wave Length:1470,1490,1510,1530,1550,1570,1590,1610nm
    Fiber:Single-mode Fiber 9/125um
    Optical interface：FC ,SC,ST
   Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

   Power
    Power supply: AC180V ~ 260V;DC –48V;DC +24V

    Power consumption: ≤5W

 Dimension
    Product Size:         443X110X44mm(WXDXH)

    Piece Weight :      1.5KG

 Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
