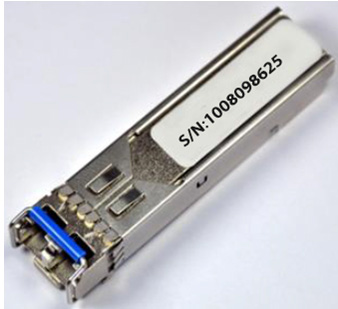

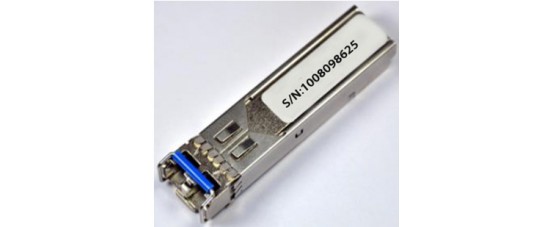

CWDM SFP 1.25 GB/s single mode duplex fibers optical transceiver
- Product description
- Functions

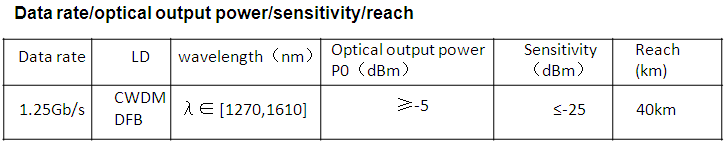

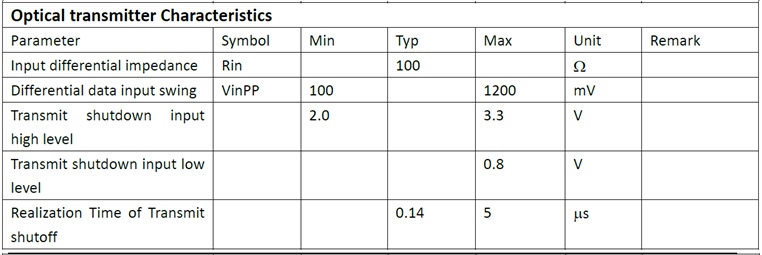

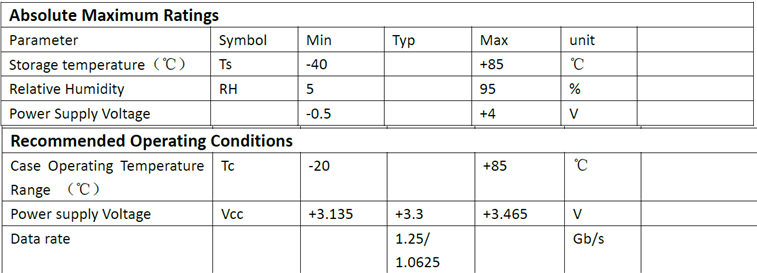

- Technical parameters
- Application
-
Up to 1.25Gb/s data rate
-
1.0625Gbps Fiber Channel Compliant
-
Module integrates receive and transmit circuits of two parts
-
All-metal shell and the shell with plastic end plug form, LC receptacle.
-
Hot-pluggable
-
Metropolitan area network
-
Single +3.3V power supply
-
Standard PECL data output and input with signal detect indication
-

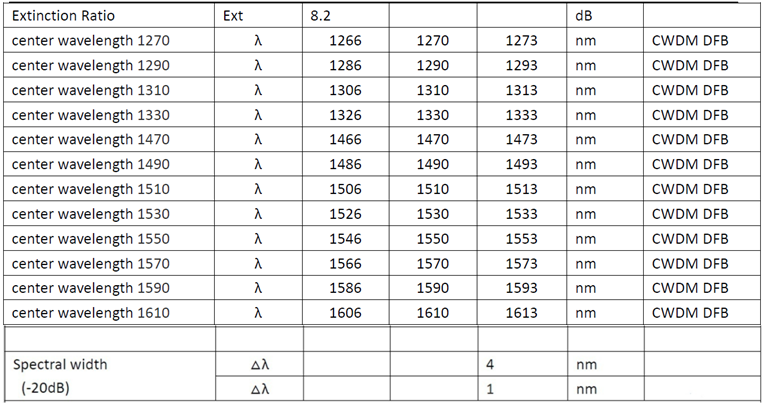

High quality CWDM DFB LD (Wavelength from 1270nm—1610nm)
-
Compliant with SFP MSA
