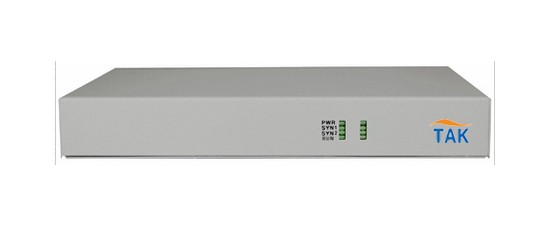

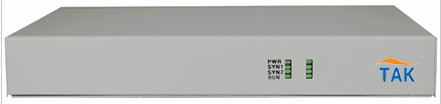

4 electrical Ethernet +2 optical Ethernet cascade fiber media converter

This equipment provides 4*FE+2*100Base-fx Ethernet,Can chain type network,with the anti death monitoring automatic reset function

Product description
Functions
Technical parameters

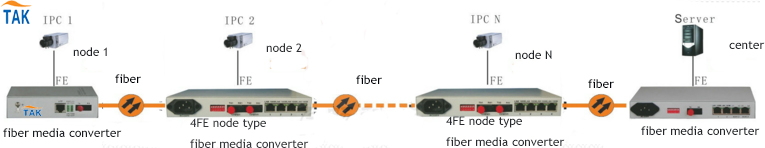

Application

TK-C2FO-4FE provides 1-4 Channel 10M/100M Ethernet interface, master fiber interface and backup interface. This four Ethernet interface is switch interface, can be cascaded through 2 fiber interface, convenient for chain group network, support VLAN.

Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;
Device provides 4 Ethernet UTP, 2 Ethernet optical port
Support full-duplex and half duplex network communication, with auto-negotiation capability;
The Ethernet can match with the switch product complied with IEEE802.1Q protocol
Effectively isolate network conflicts and broadcast packets, have broadcast storm prevention function
Multiple devices can be cascaded to Ethernet network

Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

Transmission distance may also be limited by fiber optic bandwidth.

Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)

Piece Weight: 1.8KG

Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
