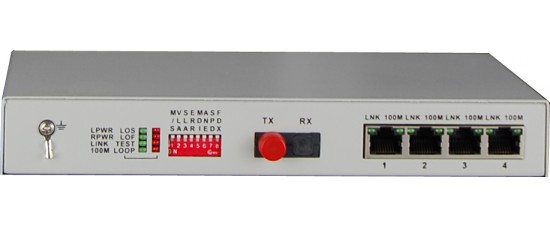

Ethernet fiber modem

•  Based on self -copyright  IC
•  The device can manage the remote device condition , OAM management data did not take up user’s timeslot
•  The local device can forced the remote device rate follow it
•  The Ethernet interface supports jumbo frames (2036 Bytes);
•  Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering
•  Optical Ethernet Interface supports 100M, full duplex
•  1 Channel 10M/100M Ethernet interface can isolate each other to realize communication independently
•  Have Ethernet monitor self-reset function, the equipment will not dead
•  The local device can forced the remote device rate follow it(when the device is unframed mode, that is invalid)
•  Support SNMP Network Management
•  The device supports unframed mode (2048K) set, it can the remote device condition when unframed
•  Ethernet interface supports 10M/100M, half/full duplex auto- adaptable, support VLAN
•  Ethernet interface supports AUTO-MDIX (crossed line and straightly connected line self-adaptable )
•  Can form the structure: ETH+E1 (A)－－-E1 Optical Fiber Modem(B)－－-Ethernet Fiber Modem (C)

    Link budget: 18dBm

    Power consumption: ≤10W

    Piece Weight :      1.2KG
