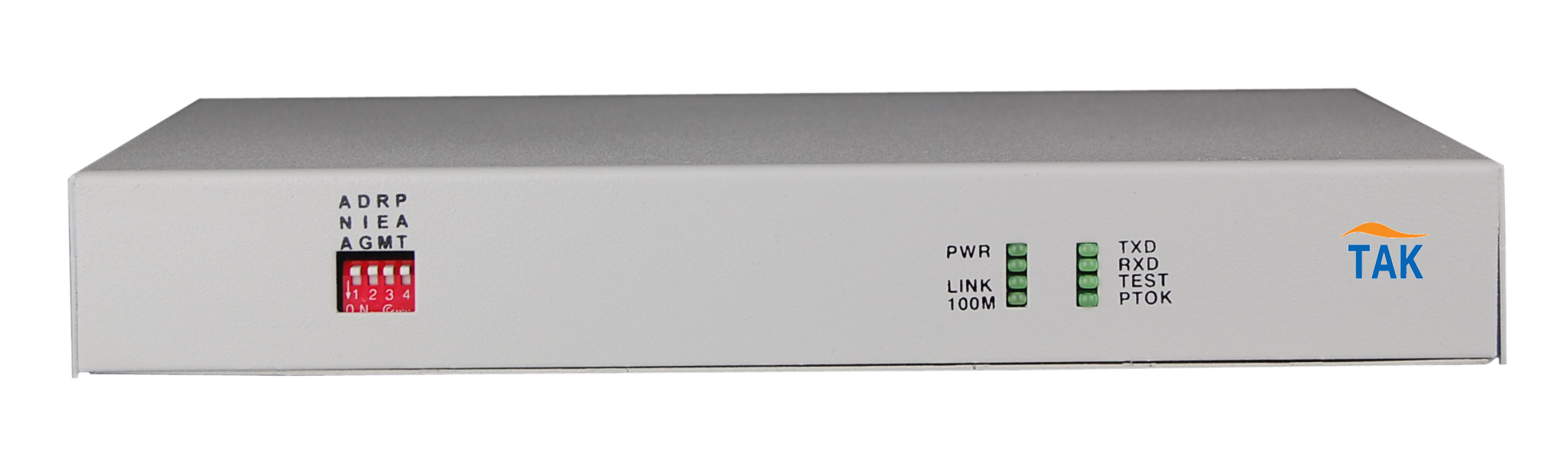

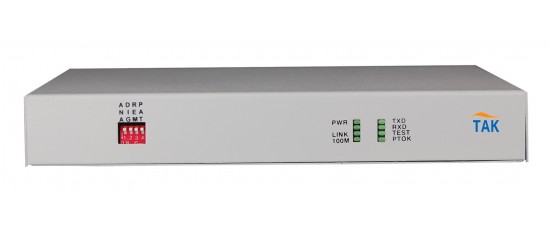

Ethernet to serial data V.35 interface converter
This equipment provides Ethernet to serial data V.35 convert ,used in pairs
- Product description
- Functions
- Technical parameters
- Application

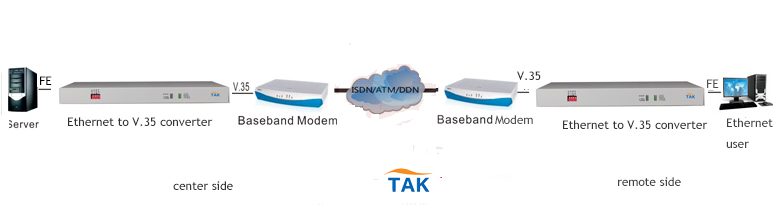

TK-IC-ETH-V.35 provide conversion from V.35 channel to Ethernet interface, and delivers Ethernet services over existing V.35 lines V35-ETH converter provides easy conversion from V.35 channel to standard 10/100 Base T Ethernet interface Can used widely in connecting between WAN and LAN, monitoring, etc. The Ethernet interface is 10/100Mbps auto negotiation and can be full/half duplex.
Local management of the V35-ETH Converter is provided via DIP switches. Front panel LEDs monitor the V.35 link, Ethernet LAN and other serial ports for status and Loss of Sync V35-ETH compact V.35 Access Converter provides V.35 Network Termination as well as serial or Ethernet LAN interface conversion in a standalone or rack mount package. V35-ETH terminates the V.35 Telco interface and converts the data for transmission to a user-oriented 10BaseT interface.
