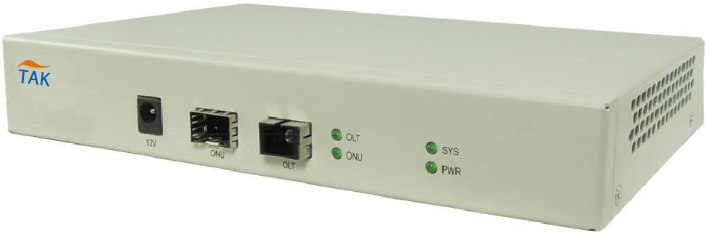

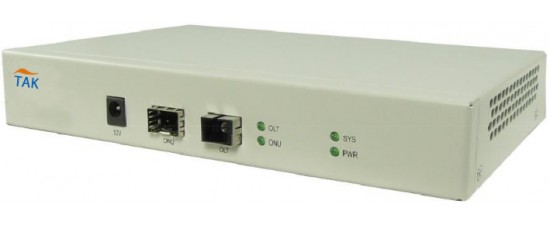

GPON extender

• Support amplifying optical power of GPON lines and transmitting services transparently.
• Support 3R amplification with extracted clock signals.
• Support expanding coverage and prolonging transmission distance to 40 km in cooperation with TAK GPON system.
• Support flexible networking by cascading multiple devices in serial or parallel mode.
• Support saving OLTs, prolonging networking distance, and increasing optical splitting ratio.
• Support easy installation, convenient maintenance, and plug and play.
• Support deployment in any location free of limit by NEs.
•   Support lowering cost to maximum investment return.

Note:

The TK-GP-EX01is an active device, requiring 220 VAC power input, or redundancy power supply if allowed.

It supports up to 40 km absolute/differential distance in cooperation with TAK GPON system.

It requires configuration of OLT parameters (such as RTT), which are available from R&D department.

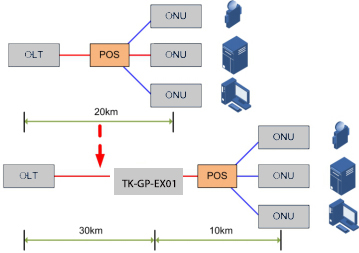

Application 1:

It is deployed between the OLT and optical splitter to increase the optical budget of the trunk, as well as the trunk of the ODN. It was initially deployed in the trunk.

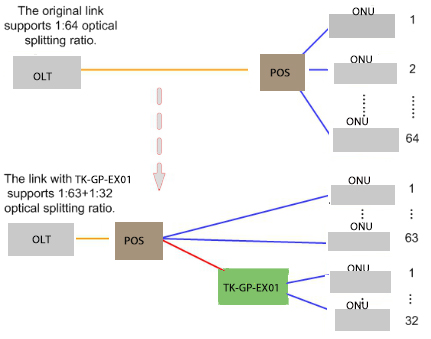

Application 2:

It is deployed between the OLT and optical splitter to increase optical splitting ratio, which can resolve the optical splitting ratio limit problem due to inadequate optical budget.
