- Product description
- Functions
- Technical parameters
- Application

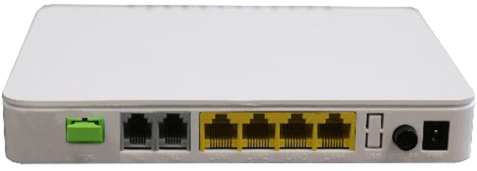

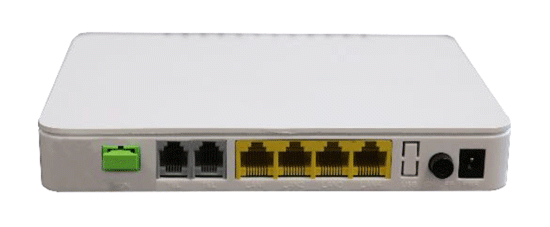

TH01-5C-GPW is a GPON ONT production of optical network terminal series. The ONT is the one of the ideal solutions for FTTH application, It provides 4*10/100/1000Mbps ports, 2 POTS, RJ11 connector.
-
Power adapter input:220V AC,50HZ
-
System power supply: See the nameplate on the device
-
Power: 12V, 1A
Power Consumption: ≤10W
-
Ambient temperature:-5 ~ +55℃(V2801W 0 ~ +40℃ )Ambient humidity:10% ~ 95%(non-condensing)
-
Store temperature:-30 ~ +60℃Store humidity:10% ~ 95%(non-condensing)
Dimension(L x W x H): 185mm×122mm×33mm
Weight(No Power Adapter): about 300g
