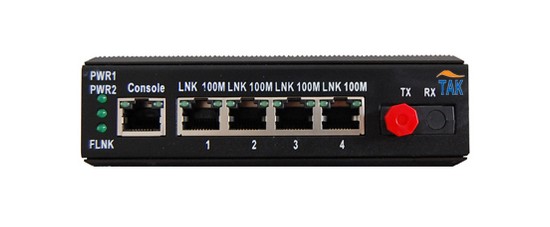

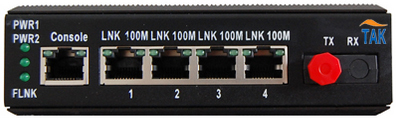

Industrial type 4*100M fiber media converter

•  Industrial Ethernet series, designed for harsh harsh industrial environments
•  device provides four Fast Ethernet ports, and share hundreds of megabytes of bandwidth, the bandwidth of each channel can be set through the Console port (Ethernet interface for switching port can support VLAN classification);
•  electrical connector (RJ45 connector) to support 10 / 100M adaptive, full / half duplex mode, MDI / MDI-X auto-detect
•  optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission modes, SC / ST / FC interface, optional
•  VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used to support up to
•      1916-byte Ethernet packets;
•  capable of VLAN classification based PORT, this method does not affect the division of the remote device; 802.1Q VLAN division, then this, the remote interface  can be divided into the same VALN; Ethernet port supports priority setting;
•  support a wide range of AC and DC input
•  support internal isolation, redundant dual power inputs
•  Power Support overload protection, anti-reverse protection
•  meet industry four electromagnetic compatibility requirements
•  Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.
•  fanless cooling efficiency, reduce repair time
•  IP40 enclosure protection rating, can withstand the test of harsh environments
•  rail or wall mounting
•  wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃
•  All models are tested by 100% roast machine, Warranty: 5 years

  Fiber
         Multi-mode Fiber
    50/125um, 62.5/125um,
    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
    Transmitting power: -12dBm (Min) ~-9dBm (Max)
    Receiver sensitivity: -28dBm (Min)
    Link budget: 16dBm
        Single-mode Fiber
    8/125um, 9/125um
    Maximum transmission distance: 40Km
    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
    Wave Length: 1310nm
    Transmitting power: -9dBm (Min) ~-8dBm (Max)
    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

 Ethernet interface(100/100M)
    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
   MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

   Power
    Power supply: AC180V ~ 260V;DC –48V;DC +24V

    Power consumption: ≤10W

  Dimension
   Product size:   133 X120 X40mm(WXDXH)
   Simple packaging: 295X225X84mm( WXDXH)

   Piece weight:  0.685KG

 Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
