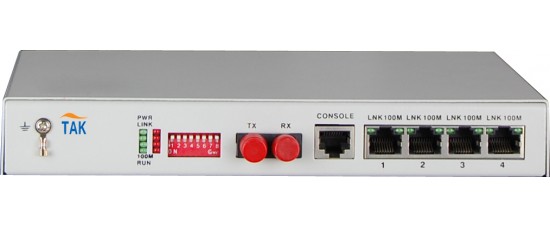

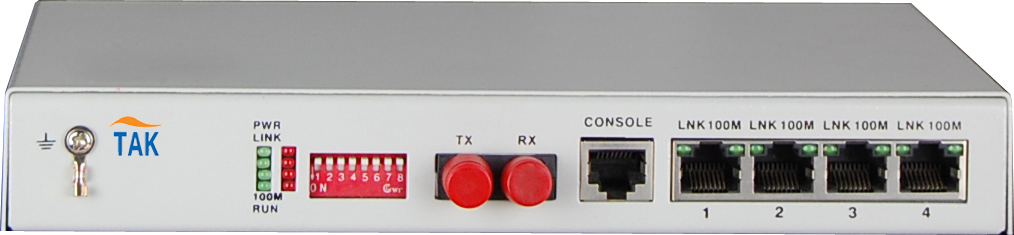

TK-FO-POE-4FE is IEEE802.3 Ethernet media converters can achieve four 10 / 100Base-T twisted pair and 10 / 100Base-FX or 10,100Base-T twisted pair and 10,100Base-FX's two kinds of media media conversion or extension of the network between the transmission distance, mainly for (20/40/60/80/120 km) long distance optical fiber transmission network.
IEEE802.3af Power over Ethernet ports to provide support through a wireless access point power Category 5 Ethernet cable (AP) or IP phones and other devices.
Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
Ethernet POE characteristics
PoE standard: IEEE 802.3af (port output power 15.4W)
PoE type: the end of cross connection (optional for mid span)
PoE port: port output power of 15.4W (IEEE802.3af)
PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)
Power
Power supply: AC180V ~ 260V;DC –48V;DC +24V
Power consumption: ≤10W
Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.8KG
Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
