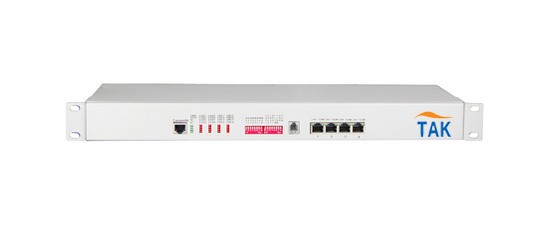

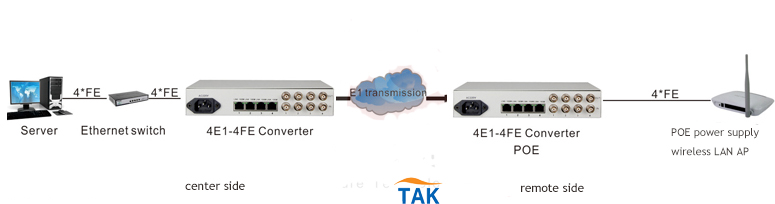

power over Ethernet POE 4E1 to 4FE interface converter

•  Based on proprietary integrated circuit;
•  PSE power company for Ti chip, high stability;
•  Ethernet port supports standard IEEE802.3af Power
•  To achieve Ethernet data transparent transmission in 1-4E1 circuits
•   Can realize the local and the remote device reset
•  Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
• Single Channel lines rate is 1984Kbit/s, 4Channel Bandwidth is up to 7936Kbit/s
•   Channel 10M/100M Ethernet interface can isolate each other to realize communication independently
• Ethernet interface supports10M/100M, half/full duplex auto- adaptable and AUTO-MDIX  (crossed line and  straightly connected line self-adaptable )
•  CRC automatic alarm threshold can be set to isolate the poor quality transmission lines and cut off a single-direction. When 2M branch circuit onedirection error rate exceeds threshold, cutting off this direction the other direction is not affected; that is to say, both of the Ethernet directiontransmission can be asymmetric
• Allow 4-Channel E1 transmission time delay difference 100ms. When the margin exceed the allowed range, the system can automatically stopon the E1 that time delay is too large to send data
•  E1 interface conform to ITU-T G.703, G.704 and G.823, not support the use of signal timeslot
•  E1 interface module with inter-set clock recovery circuit and HDB3 code circuit
•  Support E1 channel hot-plug in the device, and automatically detects the effective E1 channel and will not interrupt data transmission
• Can support 1-4Channel E1 channel configuration, can automatically detect the number of E1 and select the E1 available;

  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance), 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

 Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

 Ethernet POE characteristics
    PoE standard: IEEE 802.3af (port output power 15.4W)
    PoE type: the end of cross connection (optional for mid span)
    PoE port: port output power of 15.4W (IEEE802.3af)

    PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)

  Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

  Dimension
    Product Size :       216X140X31mm( WX DXH))
    Simple packaging : 274X193 X84mm ( WX DXH)

    Piece Weight: 1.3KG

 Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
