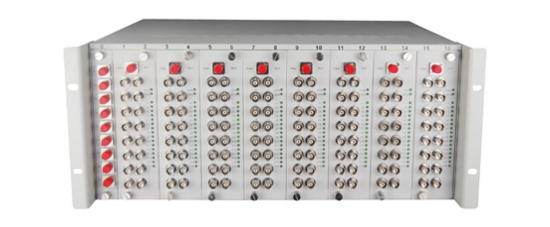

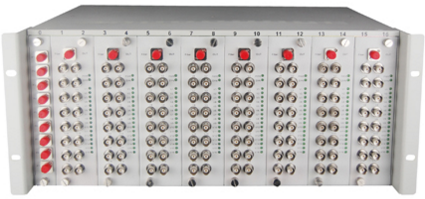

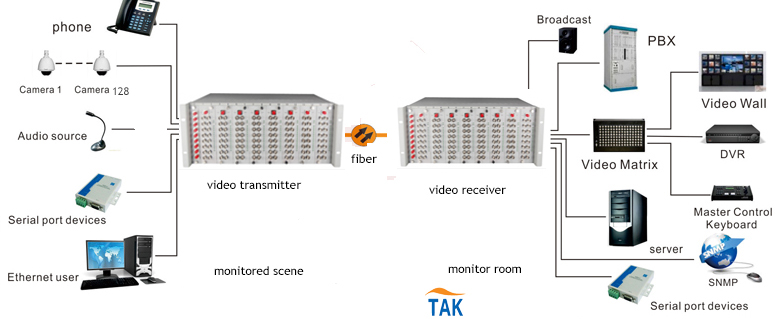

Rack mount chassis 128 CH video fiber optical transceiver, support audio, data,ETH,E1,phone etc

• 128 Video Optical Multiservice way for single fiber transmission;
•  equipment for 4U 19 inch 17 slot chassis features a total of eight plates, 16 pure video board occupies two slots, 16 video versatile interface board occupies three slots;
• easy expansion, increasing the board to, easy maintenance, replacement card can be;
• data interface and video interface with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20us, the peak output voltage 6KV open standards;
•  can detect no light when closed, the remote device is powered down or disconnected fiber;
•  PAL / NTSC / SECAM compatible with all standard, studio-grade transmission quality;
•  data, Ethernet, audio, switch, telephone, CAN bus interfaces optional;
• provides bidirectional asynchronous data (forward and reverse);
•  asynchronous data transfer rate 110-115.200Kbps above, asynchronous data for RS232-RS485-RS422- Manchester code

  Video interface
    Video Bandwidth:   5Hz~10Hz
    Rate input & output Level:  1Vp-p
    Sampling Frequency:  16.4M (typical value)
    Signal Impedance:  75 ohm
    Signal Interface:  BNC/PAL/NTSC/SECAM
    Differential Gain (DG):  <1.3 %( typical value)
    Differential Phase (DP):  <1.3° (typical value)

    Signal Noise Ratio (SNR):  63dB

 Data interface
    Data Interface:  RS-232,RS-422,RS-485,TTL
    Data Mode:  NRZ,Manchester,Bi-phase
    Data Rate:  110bps-115.200Kbps

    Interface Port:  RJ45

 Audio
    Audio input & output Level: 0.5-4Vp-p
    Audio input & output impedance: 600ohm (balance / imbalance)
    Audio Bandwidth: 20Hz-20KHz
    Nonlinear distortion coefficient: < 1 %
    Audio signal-to-noise ratio (weighted): S/N>85dB

    Interface Port: RJ45/RCA

 Ethernet interface(100/100M)
    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
   MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

  Switch
    Respond Time: <0.5ms

    Switch Signal: 30VDC/0.5A

  Optical
    Respond Time: <0.5ms
    Switch Signal: 30VDC/0.5
    Ringing voltage:75V
    Ringing frequency:25HZ
    Wave Length:1470,1490,1510,1530,1550,1570,1590,1610nm
    Fiber:Single-mode Fiber 9/125um
    Optical interface:FC ,SC,ST
   Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

  Power
    Power supply: AC180V -260V;DC –48V;DC +24V

    Power consumption: <=5W

  Dimension
    Product Size:         443X365X195mm(WXDXH)
    Simple packaging:  560X420X285mm(WXDXH)

    Piece Weight :      8.5KG

  Working environment
    Working temperature: -10'c ~ 50'c
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
