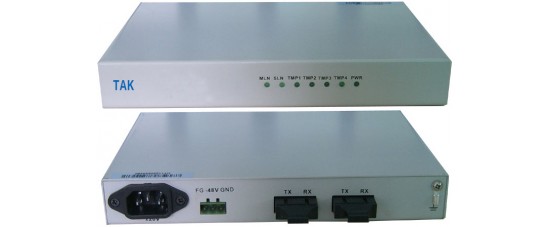

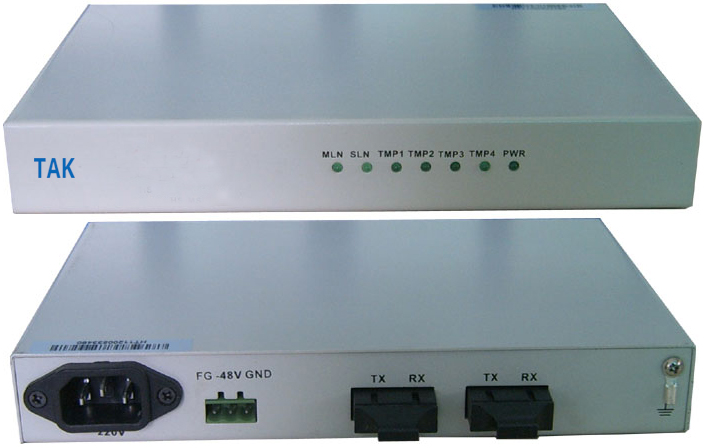

TK-IC-MS-155 can realize optical signal transparent transmission through medium between single-mode fiber and multi-mode fiber, or it also can extend single-mode transmission distance, according to some agreements between different dates.
-
supporting single fiber by double directions transmission;
-
According to some agreements between different dates.
-
Fulfilling medium convert between single-mode fiber and multi-mode fiber or extending fiber transmission distance, the wave length may be 850nm,1310nm or 1550nm.
-
Supporting medium convert between 100M fast speed Ethernet, 1000M Ethernet, 155M~1.25GATM, SDH or extending transmission distance.
-
The longest transmission distance of multi-mode is 2KM; The longest transmission distance of single-mode is 120KM.
-
As optical receiving and sending model with good optical character, electrical character, date transmits steady, and it can work for long time.
-
The transmission of optical mode 155M is above 30db and optical mode 1.25G is above 25db.
-
As it is manufactured by assembly line with advanced jointing, model works steady ,date transmits stably, and its anti - interference is good.
-
optical fiber interface: SC
-
optical fiber type
Muil-mode : 50/125um, 62.5/125um,100/140um,wave length:850 or 1310nm
Single-mode: 8.3/125um,8.7/125um,9/125um,10/125um,wave length :1310 or 1550nm
-
Transmission distance: multi-model with 2KM, single-model with 120KM.
-
Transmission rate: 10/100Mbps.155Mbps.622 Mbps.1000 Mbps.1.25Gbps.2.5Gbps
-
Indicator light: it indicates power supply's condition , also suggests single-fiber and multi-fiber link condition.
-
Power supply: absolute construction: 1)input 100v~260VAC 2)input 36V-72VDC , output 3W.
-
Power: <3W.
-
Dimention: 150mm(L)x200mm(W)x30mm(H)
-
Operating temperature: 0℃~50℃
-
Storage temperature: -20℃~80℃
-
Humidity: 5%~90% without condensing
