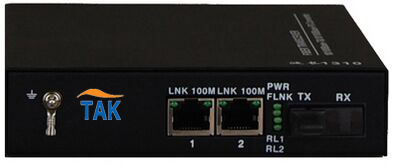

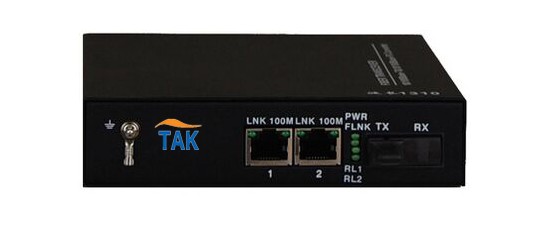

SNMP managed fiber media converter( 1 fiber port +2 UTP FE ports)

•  device provides two Ethernet ports, one optical port, automatically adapt to the 10 / 100Mbps environment, easy to upgrade the network;
• The device comes with OAM remote management frames, real-time access and manage remote Ethernet;
•  Ethernet electrical interface with the distal end of the LINK LED display for easy fault diagnosis.
•  support full and half duplex network communication, with auto-negotiation capability, power port MDI / MDI-X Adaptive without manual adjustment;
•  support SNMP network management, you can determine when the light no LINK Ethernet fiber cut or remote shutdown is to support the
•    local device to the remote device configuration, you can set the local device and remote SNMP devices in the following functions:
•     Ethernet copper ports each way five operating mode setting;
•      every channel Ethernet electrical interface flow control switch;
•      Ethernet bandwidth control for each channel electrical interface from 0-100M can set the          smallest particles 32K;
•      every channel Ethernet electrical interface total eight 802.1P priority level setting;
•     provide up to three kinds of Ethernet isolation mode, you can come in to support demand          with Vlan Tag isolation and without Vlan
•       Tag Ethernet packet;

  Ethernet UTP Interface
    Interface rate:              10/100 M, half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

  Optical Ethernet interface
    Wave Length:          1310nm, 1550nm
    Interface rate:              100 M, half/full duplex
    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  FC/SC
    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

  Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

   Dimension
    Product Size :       216X140X31mm( WX DXH))
    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
