TDMoIP, 4~16 E1/T1 over 1 FE port converter Typical Application

TK-EMTD16/TDP16 series (4~16 E1/T1 over 1 FE port converter,TDMoIP) , can be interconnected with aggregation E1 over Ethernet interface converter TK-EMTD63(TDMoIP-63E1),making point-to-multipoint application. And can also make point to point connection realize interconnections within the same Ethernet sub-network, such as used in wireless bridge interconnection, or using routers or layer-3 switch to across the Ethernet segment to realize interconnection within the IP network. Typical applications are shown in Figure 1-1 to Figure 1-3.

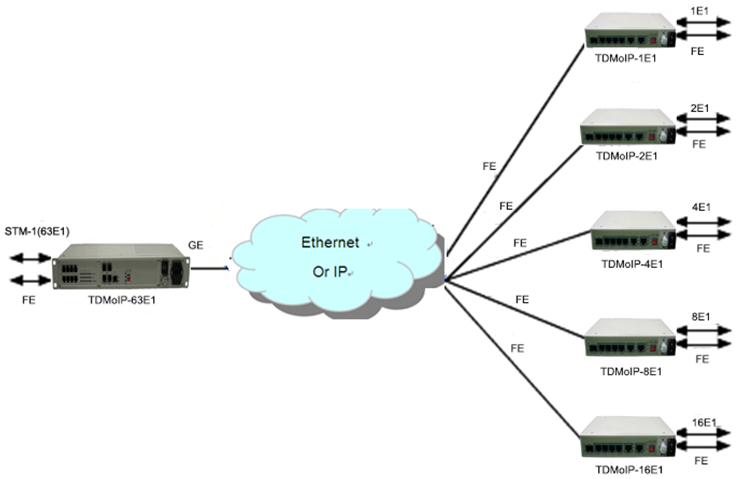

Figure 1-1 Typical application of TK-EMTD16/TDP16 series devices(4~16 E1/T1 over 1 FE port converter,TDMoIP

TDMoIP application

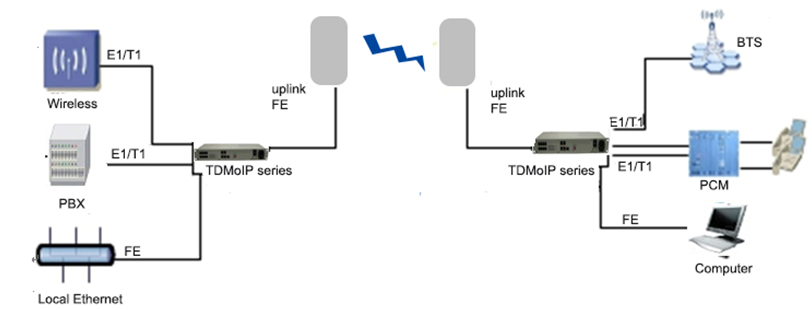

Figure 1-2 Typical application of TK-EMTD16/TDP16 series device (4~16 E1/T1 over 1 FE port converter,TDMoIPin wireless network

E1 over FE converter application

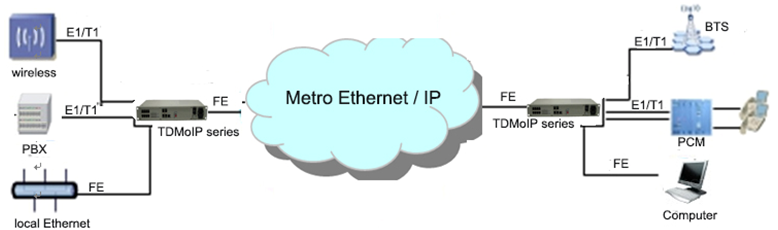

Figure 2-3 Typical application of TK-EMTD16/TDP16 series device (4~16 E1/T1 over 1 FE port converter,TDMoIPin cable network

TDM over IP application



In wireless network application, TK-EMTD16 sereies devices (4~16 E1/T1 over 1 FE port converter,TDMoIPcan cooperate with wireless bridges from most manufacturers. At present, the transmission bandwidth of wireless bridge sold in the market is changing with the Ethernet packets; some bridges will introduce the packet delay jitter. When working with different wireless bridges, E1/T1 signal packetlength and jitter absorption buffer size need to be adjusted to get the best transmission effect.
