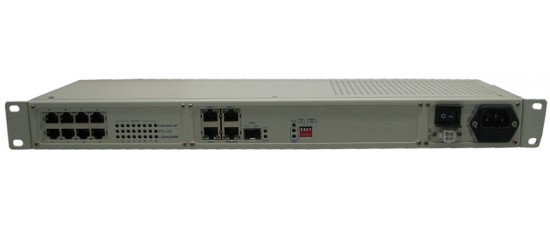

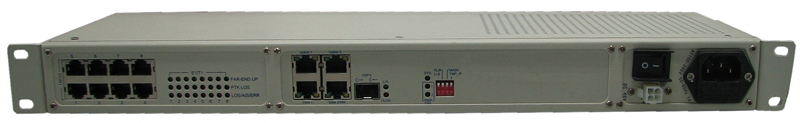

TDMoIP-8E1
This equipment provides 8 E1 ports, 4 FE electrical ports and 1 FE optical port, 2 uplink ports, 2 local data ports or monitoring ports, optical port can be used for uplink or local data.
- Product description
- Functions
- Technical parameters
- Application
TK-TDMoIP-8E1 support IETF RFC4553 SAToP protocol, Ethernet encapsulation support IP/UDP. It provide 8 E1 ports, 4 FE electrical ports and 1 FE optical port, 2 uplink ports, 2 local data ports or monitoring ports, optical port can be used for uplink or local data.
-
Support IETF RFC4553 SAToP protocol, Ethernet encapsulation support IP/UDP.
-
Provide 8 E1 ports, 4 FE electrical ports and 1 FE optical port, 2 uplink ports, 2 local data ports or monitoring ports, optical port can be used for uplink or local data.
-
User-friendly Web server supported for easy setup and maintenance.
-
Support SNMP V1/V2 network management.
-
E1 clock supports 3 mode: local clock, adaptive and loopback.
-
Ethernet built-in layer 2 switch, support VLAN (port based, 802.1Q based and QinQ based), QoS (port based、8021.1P based,MAC based and TOS based).
-
Ethernet support MAC address automatic learning.
-
Ethernet packet size up to 9720byte.
-
Point to point and point to multipoint supported.
-
Local Ethernet port throughput limiting.
-
Ethernet support traffic control (IEEE802.3x based).
-
Software and hardware online upgrade.
-
Power supply redundancy.
2 PWR slots
1 E1 interface slot
1 Ethernet uplink slot
Ethernet uplink card
4 FE electrical ports and 1 FE optical port
Comply with IEEE 802.3, 802.1Q, 802.1P, 802.3x
Speed and duplex auto-netiation or manual
E1 card
8 E1 ports
Power
2 power slots
AC 220v power module
DC -48v power module
Consumption ≤40W
Working Environment
Temperature:0~ 50°C
Relative Humidity:≤90% (non-condensing)
Dimension
1U: 440 x 44 x 135 (mm)
