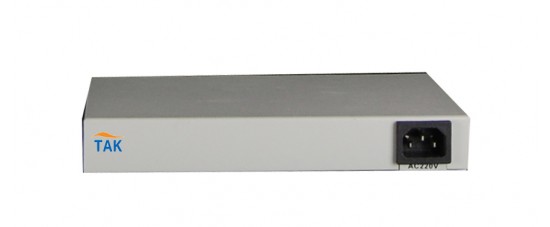

V.35 fiber modem(data rate N*64k)

This equipment provides V.35 data over fiber, N*64K V.35 rate can be arbitrarily set ,Equipment built-loop test function

Product description
Functions
Technical parameters

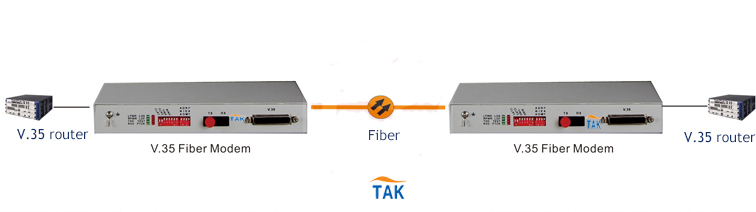

Application

TK-MFO-V.35 provides one optical interface and one V.35 interface to achieve interface conversion, rate conversion and timeslot extraction from fiber to V.35 interface. When framed mode, the users can extract timeslot n*64K (n ≤ 31) data channel; When unframed mode, the data channel rate is 2.048Mbps. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Based on self -copyright IC
Can detect the reason of optical signal losing is that the device power-off or transmission fiber broken
The local device can forced the remote device rate follow it(valid when framed )
Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
After strict testing and practical verification system, completely comply with protocol ITU-T V.35, G.703, G.704
Have three Loop Back Mode: E1 interface Loop Back (ANA)、V.35 interface Loop Back(DIG),Command the remote V.35 interface Loop Back(REM)
Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester
V.35 interface supports hot-plug, supports DTE or DCE device interconnection
Provide 3 clock types: Internal clock, External clock,E1 line clock;
AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free

Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

V.35 Interface
Interface rate: 2048Kbps
Interface Standard: Compatible with V.35 Standard
Connector: DB25
Connect Mode: DCE

Clock Type: Internal clock, External clock,V.35 external clock

Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤5W

Dimension
Product Size: 216X140X31mm(WXDXH)
Simple packaging: 274X193X84mm(WXDXH)

Piece Weight : 1.2KG

Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
